CURVED ELEGANCE, IMPRESSIVE LIGHT SPREAD. Pioneering design and incredible light capacity. Let yourself be enchanted by Siberia Curved. A curved shape, appealing from all angles. An elegant look, even during the bright hours of the day. Exclusive material choices. Innovative features that provide freedom of choice. Make your own mark and choose between amber and white position light. And of course – Siberia Curved offers an optimized light beam that provides maximum width, without losing length. – CURVED SHAPE- DOUBLE ROW – OPTIMIZED LIGHT BEAM
Sold individually.
- Type of LED OSRAM
- Type of Lamp LED
- PCS LED´s 80
- Voltage (V DC)10-40V DC
- Theoretical effect (w) 12V 400
- Theoretical effect (w) 24V 400
- Consumption (w) 12V High beam: 393,6 White position light: 9,5 Amber position light: 30
- Consumption (w) 24V High beam: 383,3 White position light: 9,5 Amber position light: 30
- Theoretical lumen 32000
- Actual lumen 15800
- 1 LUX @ m 557
- Kelvin 6000
- IP-class 67/69K
- Color housing Black
- Color lens Clear
- Color LED´s White and amber

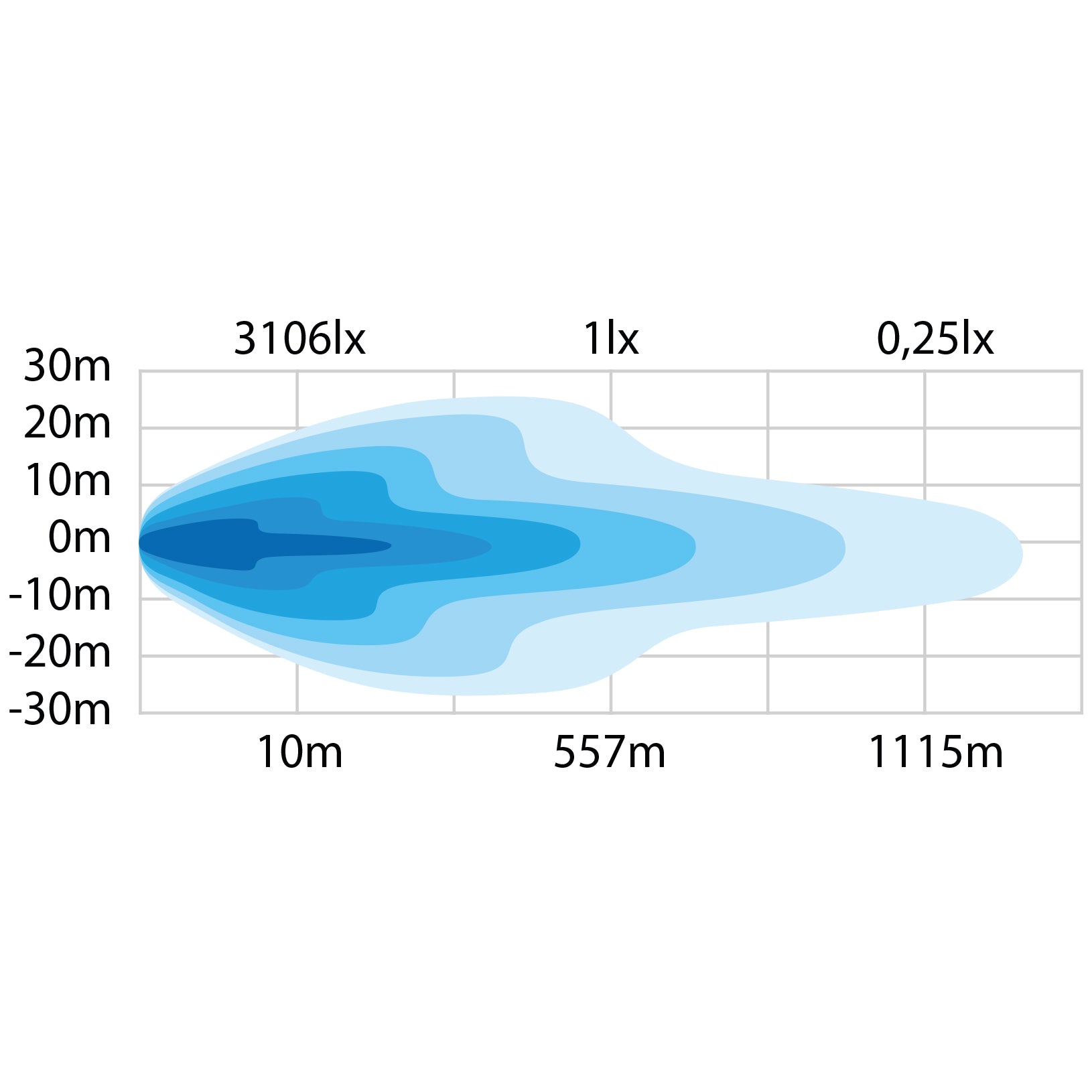

- Beam pattern Combo
- Position light Yes
- Connection Cable
- Cable length (mm) 2500
- Material bracket Stainless steel
- Material housing/chassis Aluminum
- Material lens Polycarbonate
- Length (mm) 1078,4
- Depth (mm) 71,6
- Height (mm) 76
- Height including bracket (mm) 89
- Operating temperature -30°C - +65°C
- ADR-approved No
- E-approved No
- EMC ECE R10
